Description

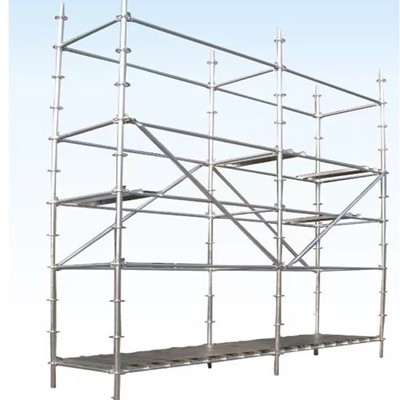

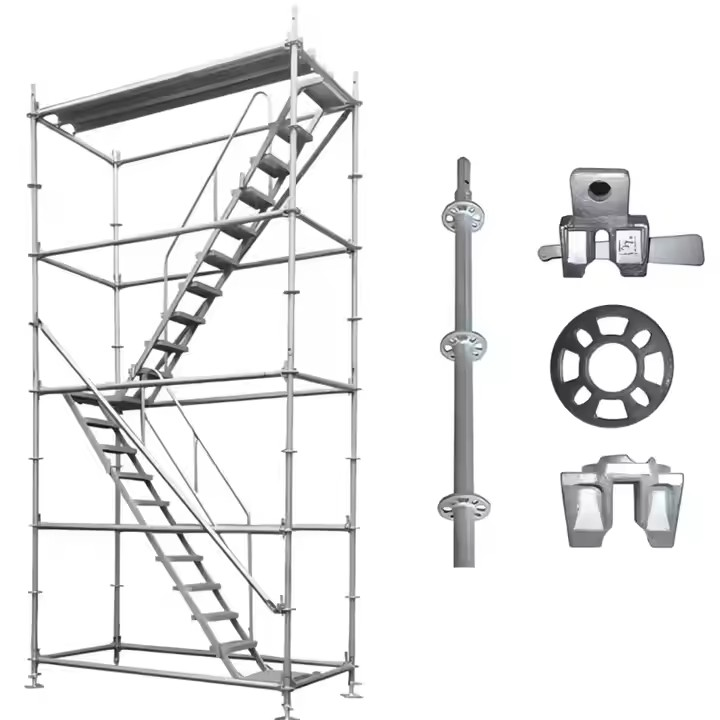

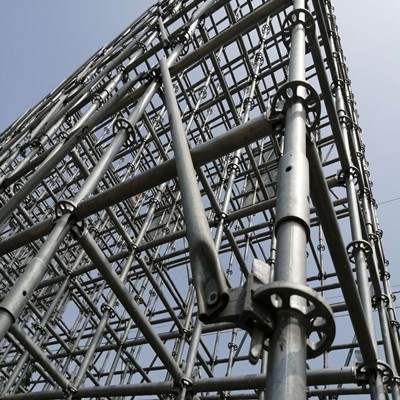

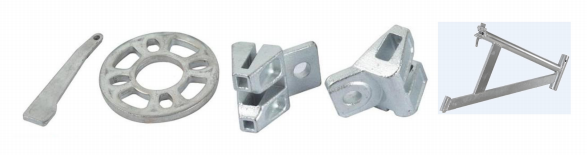

Ringlock Scaffolding mainly with three parts: Standard, Ledger, Diagonal Brace, accessoires including: Base jack, Base Collar, U Jack, Metal plank, Staircase etc.

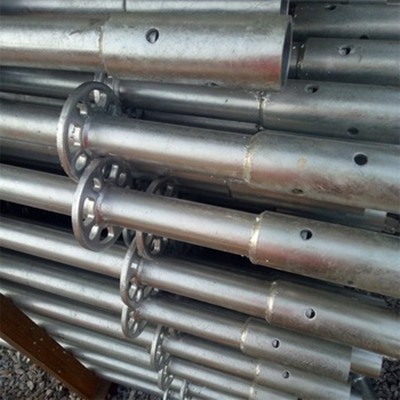

Diameter: OD48/OD60
Thickness:3.25mm
Length: 500/1000/1500/2000/2500/3000mm
Material: Q355
Surface: Hot Dipped Galvanized
Diameter: OD48
Thickness: 3.25/2.75/2.5mm
Length: 600/900/1200/1500/1800/2100/2400/3000mm
Material: Q355/Q235
Surface: Hot Dipped Galvanized
Diameter: OD48/OD42
Thickness: 3.25/2.75/2.5mm
Vertical Length: 1500mm for shoring scaffolding system; 2000mm for operation scaffolding system
Material: Q355/Q235/Q195
Surface: Hot Dipped Galvanized/Pre Galvanization
Rod: 38*5*600
Plate: 150*150*6
Base Collar:
48.3*3.25*200
Rod: 38*5*600
Plate: 185*150*50*6
Width: 210/225/240/250/300/320mm
Length: 500-4000mm
As per the request of Client
