2.5M Ledger Multidirectional Ringlock Scaffolding System For Construction
  1. 2.5M Ledger Multidirectional Ringlock Scaffolding System For Construction
  2. 2.5M Ledger Multidirectional Ringlock Scaffolding System For Construction
  3. 2.5M Ledger Multidirectional Ringlock Scaffolding System For Construction
  4. 2.5M Ledger Multidirectional Ringlock Scaffolding System For Construction
  5. 2.5M Ledger Multidirectional Ringlock Scaffolding System For Construction

2.5M Ledger Multidirectional Ringlock Scaffolding System For Construction

scaffolding  , scaffold  , frame  , construction  , infrastructure
Send Inquiry Live chat

Description

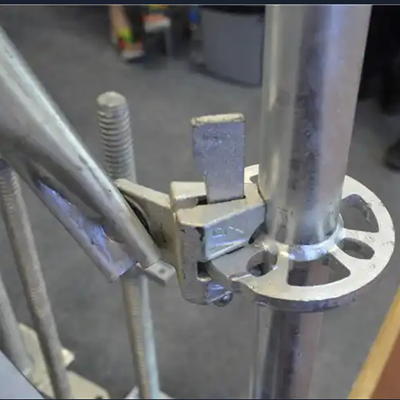

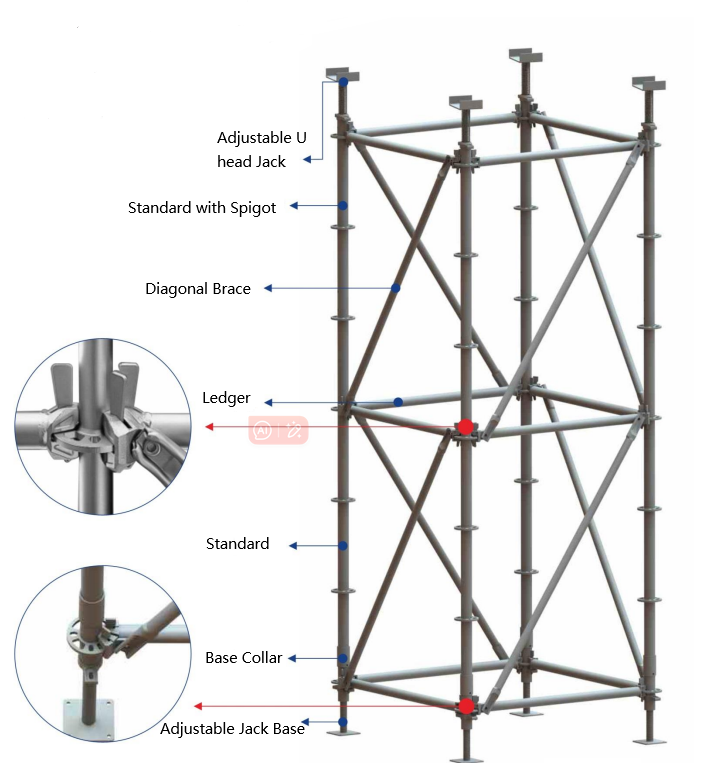

Ringlock Scaffolding mainly with three parts: Standard, Ledger, Diagonal Brace, accessoires including: Base jack, Base Collar, U Jack, Metal plank, Staircase etc.

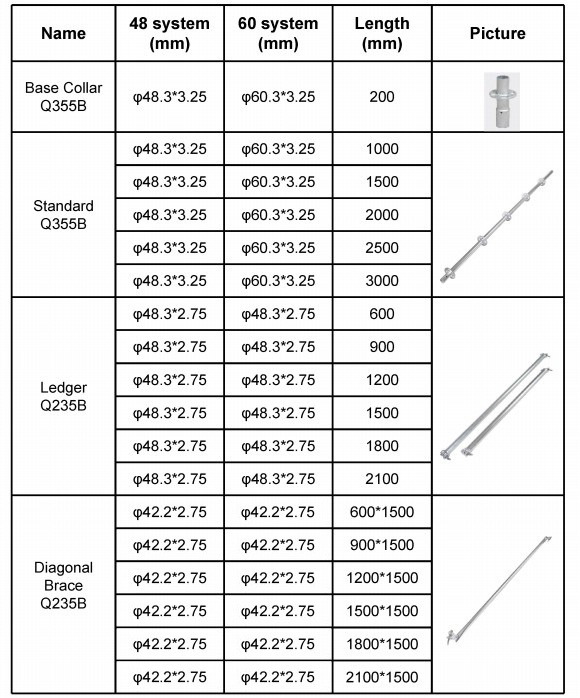

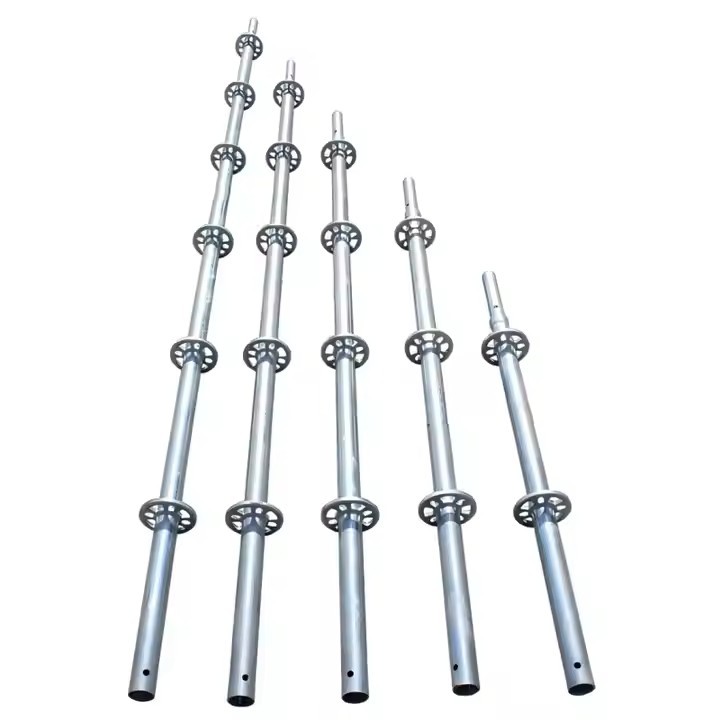

Standard:
Diameter: OD48/OD60
Thickness:3.25mm
Length: 500/1000/1500/2000/2500/3000mm
Material: Q355

Surface: Hot Dipped Galvanized


Ledger:
Diameter: OD48
Thickness: 3.25/2.75/2.5mm
Length: 600/900/1200/1500/1800/2100/2400/3000mm
Material: Q355/Q235

Surface: Hot Dipped Galvanized


Diagonal Brace:
Diameter: OD48/OD42
Thickness: 3.25/2.75/2.5mm
Vertical Length: 1500mm for shoring scaffolding system; 2000mm for operation scaffolding system
Material: Q355/Q235/Q195

Surface: Hot Dipped Galvanized/Pre Galvanization

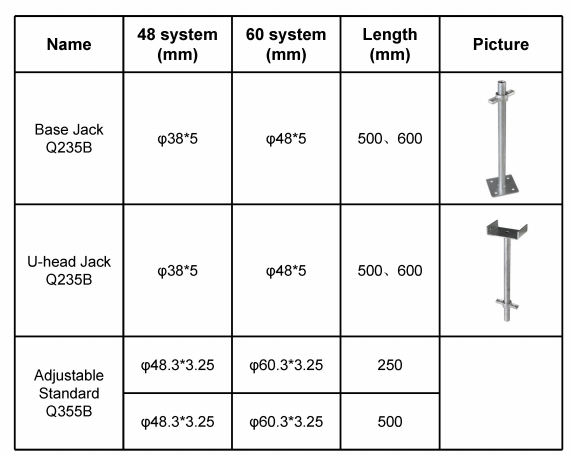

Base Jack:
Rod: 38*5*600
Plate: 150*150*6

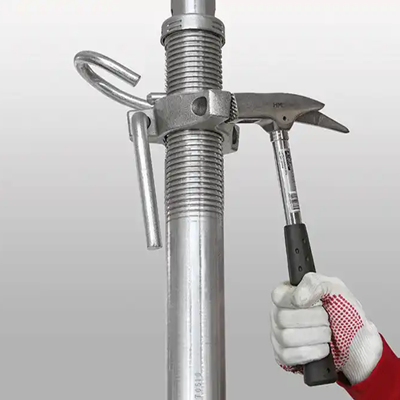

Base Collar:

48.3*3.25*200

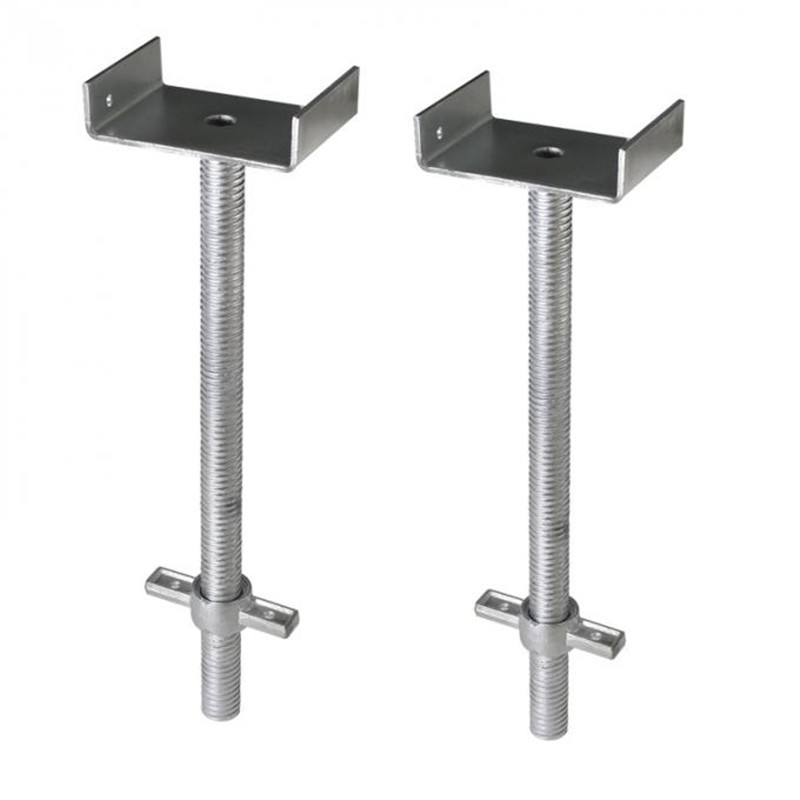

U head Jack:
Rod: 38*5*600

Plate: 185*150*50*6


Metal Plank:
Width: 210/225/240/250/300/320mm

Length: 500-4000mm


Staircase:

As per the request of Client
